Sterile Storage Infrastructure for Diagnostic Center in Ahmedabad

Project Overview

A newly established multi-specialty diagnostic clinic in Navrangpura, Ahmedabad, required a complete furniture solution for their clinical operations. The facility included:

• Pathology and radiology departments
• Pharmacy with controlled substance storage
• Multiple doctor consultation rooms
• Medical records archive
• Public reception and waiting area

Every furniture piece had to meet strict healthcare hygiene standards. This meant providing non-porous surfaces that could be chemically sanitized multiple times daily without degradation. With a fixed opening date, the furniture was the final crucial element before the clinic could begin accepting patients.

Client Requirements

The clinic administration specified five core requirements:

• Chemical Resistance: Storage cabinets fabricated from steel with non-porous, chemically resistant surfaces. Traditional wooden cabinets absorb moisture and harbor bacteria, making them unsuitable for sterile environments.
• Visual Inventory Management: Pharmaceutical storage cabinets with lockable glass doors, allowing pharmacy staff to visually scan inventory levels without opening the cabinet and risking contamination.
• High-Capacity Seating: Waiting area seating that could accommodate 30+ patients during peak hours, with surfaces easily disinfected between patients.
• Professional Consultation Rooms: Functional yet minimalist furniture that projected professionalism without the coldness of bare metal.
• Strict 1-Week Timeline: The entire order had to be delivered and installed within one week to meet the non-negotiable opening date.

Site Challenges

Healthcare furniture must satisfy contradictory demands. Our team had to solve several complex challenges:

• Security vs. Accessibility: Pharmacy cabinets needed to be secure enough for controlled substances, yet transparent enough for rapid visual location during emergencies.
• Comfort vs. Durability: Waiting area seating had to be comfortable for unwell patients, yet constructed from materials that withstand aggressive chemical cleaning protocols.
• Logistical Constraints: The clinic was located on a busy commercial street with limited parking and no dedicated freight entrance. Large furniture pieces had to be maneuvered through standard-width corridors.

Planning and Consultation Process

Our team visited the Navrangpura clinic to measure each room, document doorway widths, corridor turning radii, and elevator dimensions. We met with the clinic's medical director to understand the specific workflow of each department:

• Pharmacy Layout: Designed to place the most frequently accessed medications at eye level in glass-door cabinets.
• Consultation Rooms: Planned to keep the doctor's desk positioned near the examination area for efficient patient interaction.
• Waiting Area: Layout designed to maintain the minimum spacing required for wheelchair access between rows.

We produced detailed furniture specifications and room-by-room placement drawings for the clinic's approval, which was received the same day given the urgency of the timeline.

Furniture Manufactured and Supplied

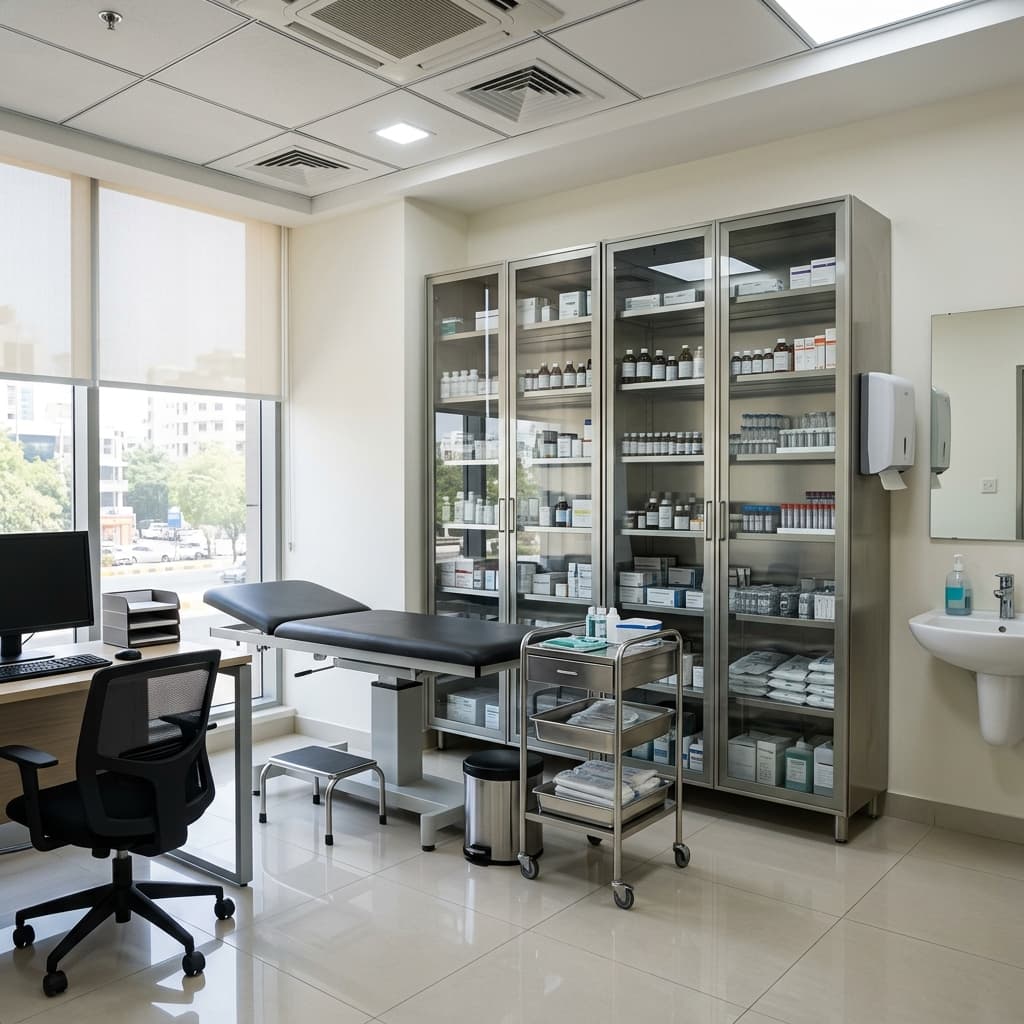

• Glass-Door Medicine Cabinets: 8 steel cabinets with 5mm toughened glass doors, cam-lock mechanisms, adjustable internal shelves, and powder-coated interiors.

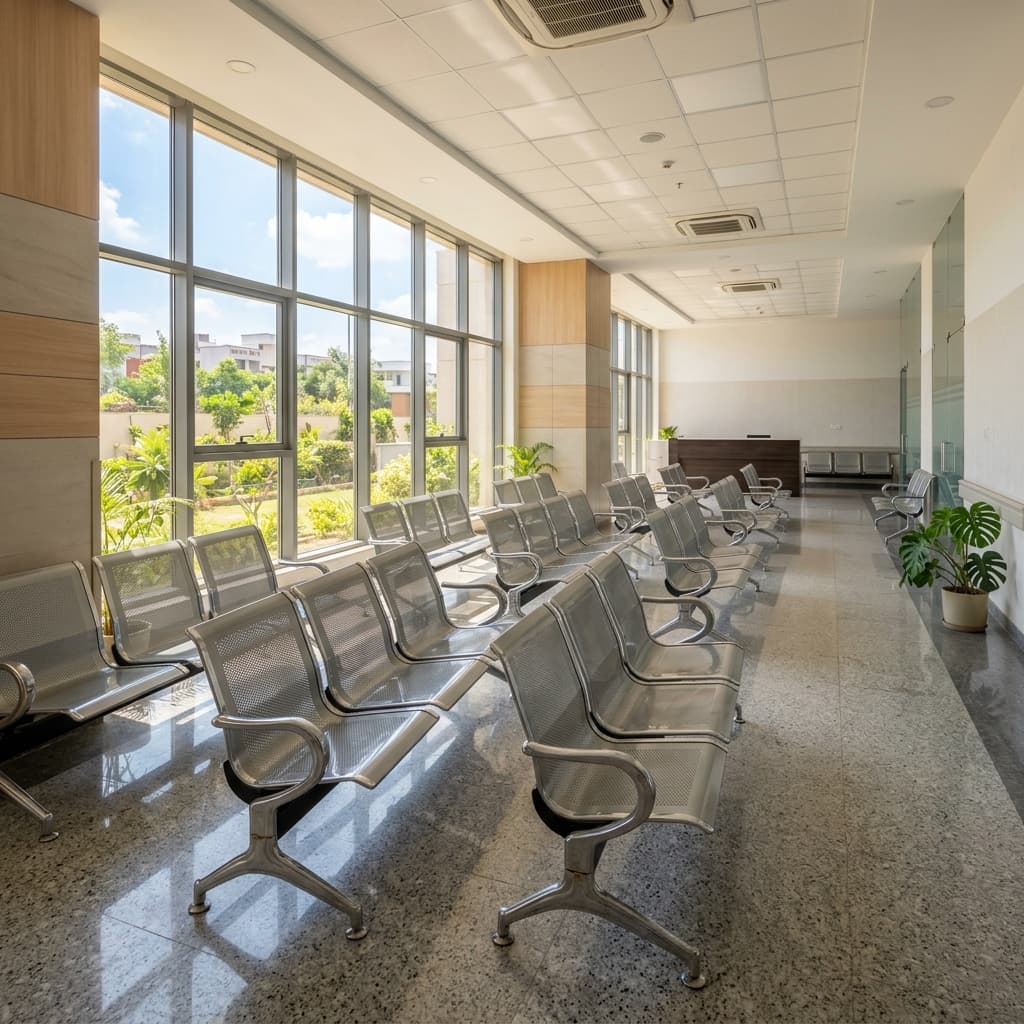

• Tandem Beam Waiting Seating: 6 units of 5-seater perforated stainless steel tandem beam seating for the reception area, providing a total capacity of 30 patients.

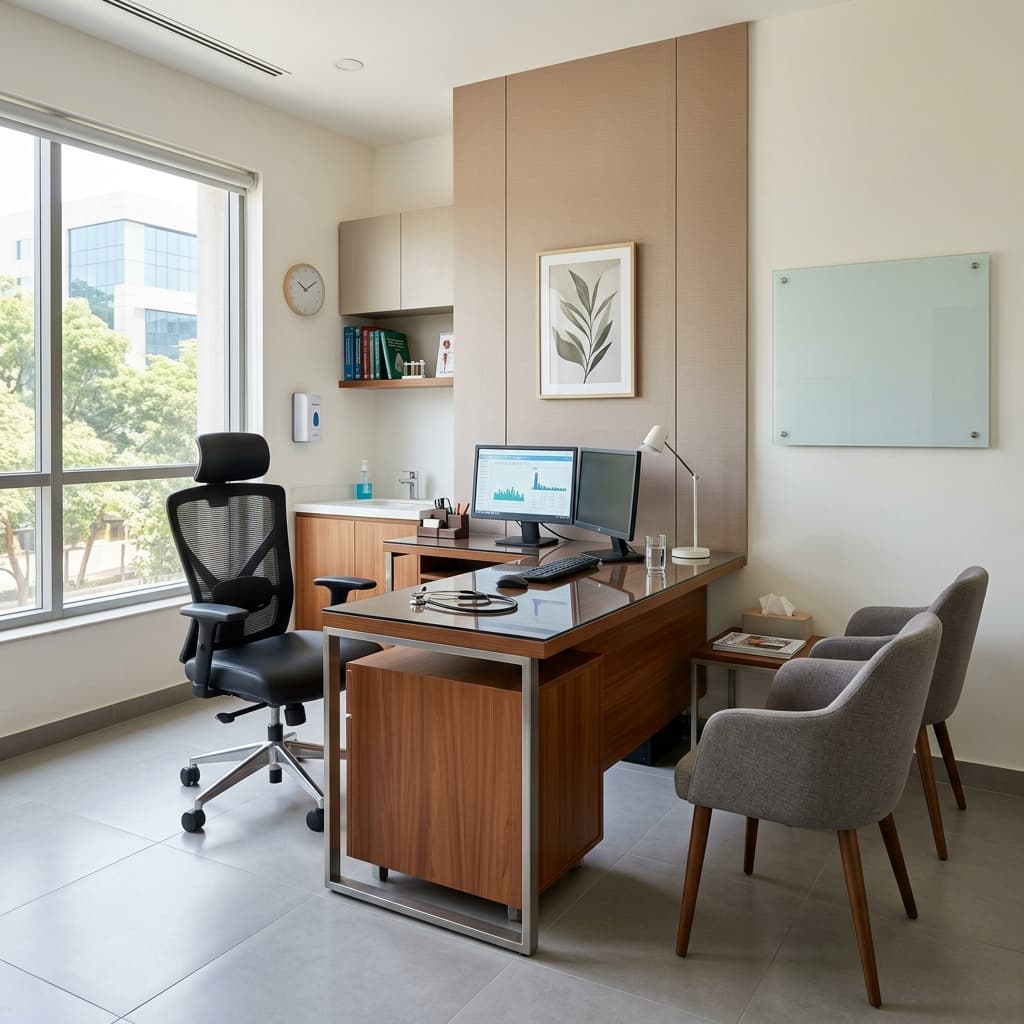

• Consultation Room Furniture: 4 doctor's desks with steel frames and laminated tops, paired with ergonomic executive chairs.

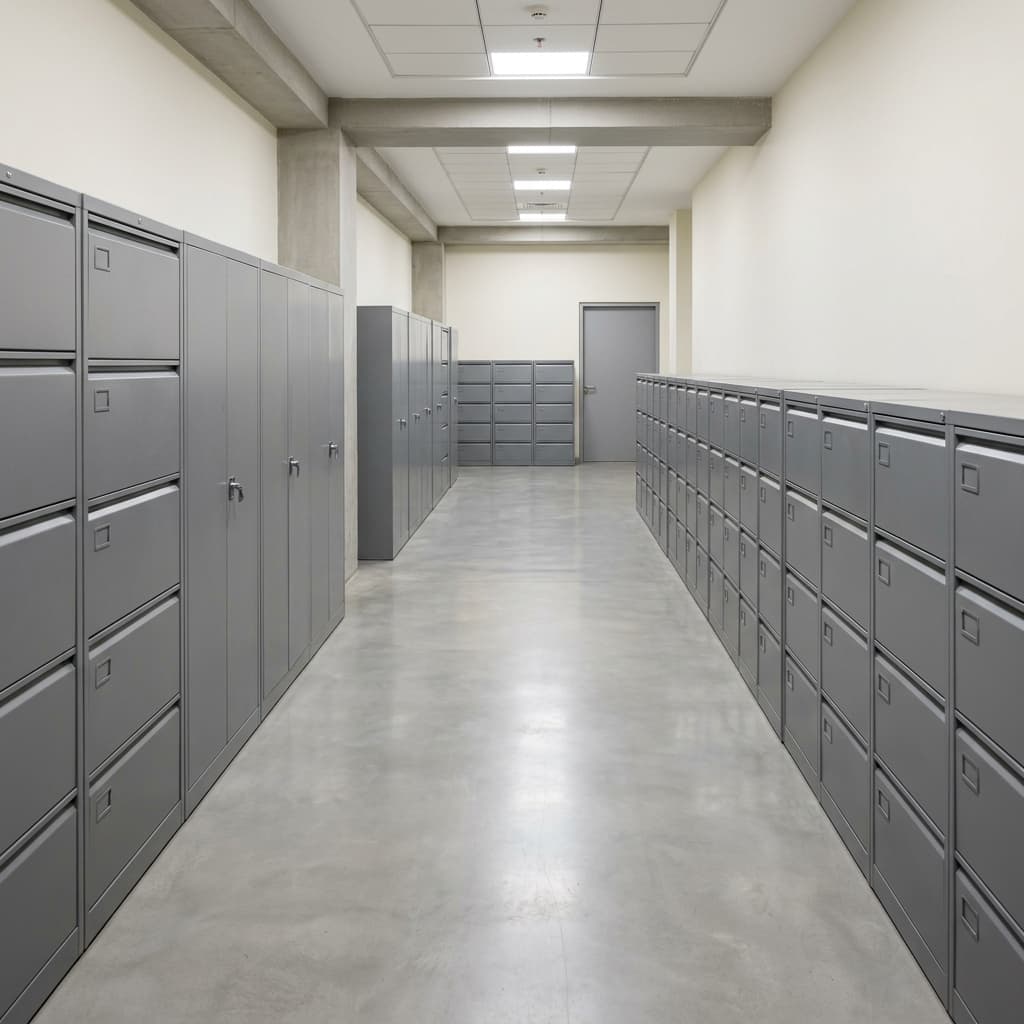

• Patient Record Filing: 6 lateral steel filing cabinets with 4-drawer configurations and central locking.

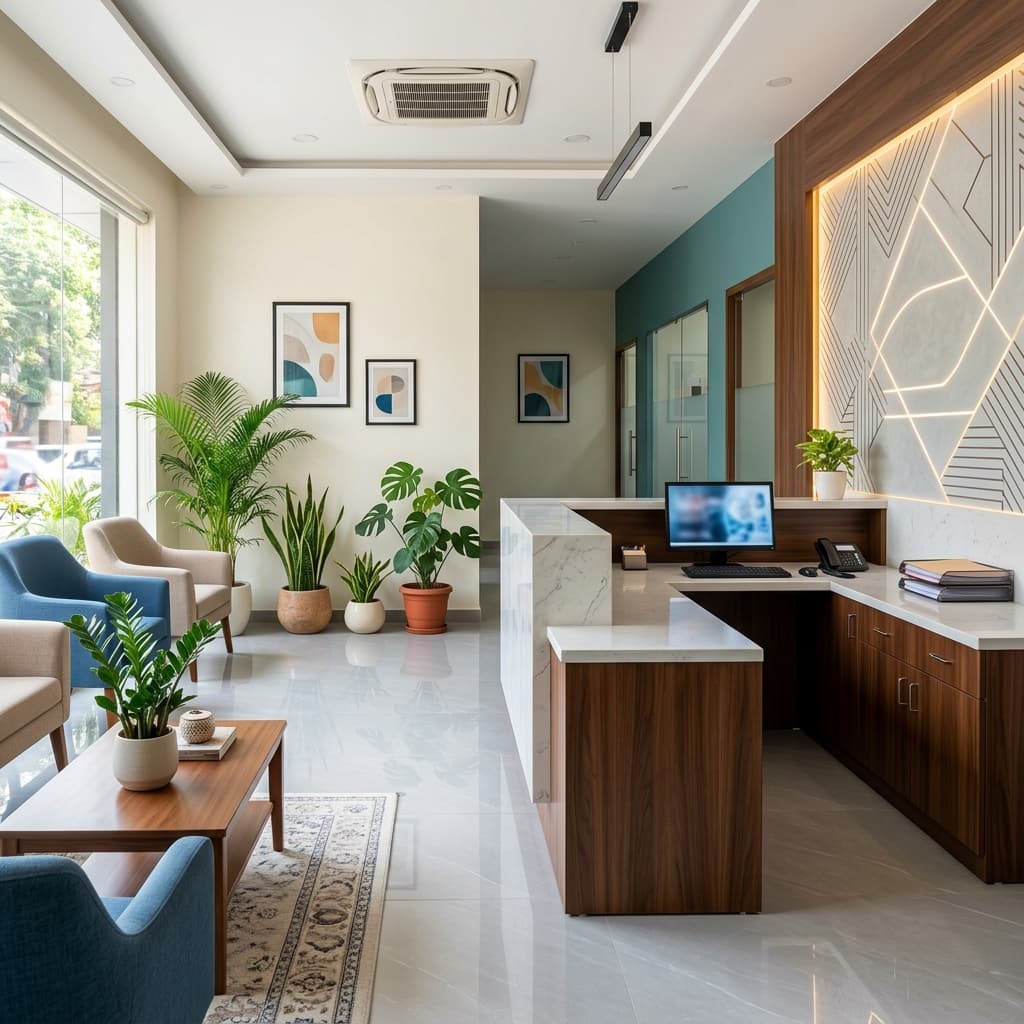

• Reception Counter: Custom L-shaped reception desk with a raised patient-facing counter, steel internal frame, and integrated cable management.
• Examination Room Cabinets: 4 steel side cabinets with solid doors for storing examination supplies and medical consumables.

Materials Used

The medicine cabinets and filing units were fabricated from 20-gauge CRCA steel, providing structural rigidity for heavy medical loads. The electrostatic powder coating was applied at 70 to 80 microns thickness and cured at 180 degrees Celsius.

This curing temperature creates a cross-linked polymer finish that is chemically resistant to the cleaning agents commonly used in Indian healthcare facilities, including:

• Sodium hypochlorite bleach solutions
• Isopropyl alcohol wipes
• Quaternary ammonium compound-based cleaners

The glass doors used 5mm toughened safety glass. The waiting area seating frames were fabricated from 40mm x 40mm square steel tubing with a chrome finish, and the seat pans were laser-cut from 16-gauge stainless steel with 8mm perforations to allow rapid drying after wet cleaning.

Timeline and Execution

The complete project from initial site visit to handover spanned exactly 5 days. This compressed timeline was only possible because our factory is located within Ahmedabad, eliminating multi-day shipping delays.

• Day 1: Site survey and immediate production start (cutting, bending, spot-welding).
• Day 2-3: Pre-treatment, powder coating, and assembly of hardware and glass doors.
• Day 4: Dedicated to strict quality inspection, packaging, and safe loading.
• Day 5: Late evening delivery (to avoid traffic) and overnight installation by a 6-person team.

Why Factory-Direct Manufacturing Was Chosen

The clinic explored three sourcing options. Specialized hospital furniture importers offered premium prices with 6-8 week delivery timelines. Local wooden furniture shops were fast but lacked chemical-resistant materials.

As a direct steel furniture manufacturer in Ahmedabad, we offered the exact combination the clinic needed: medical-grade steel construction, verified chemical-resistant powder coating, a 5-day delivery timeline, and pricing that reflected our manufacturing cost rather than dealer margins.
